Forage Dryer

Forage Dryer

Product introduction of forage dryer

The forage dryer is a high-efficiency, energy-saving and environmentally friendly continuous drying equipment, which is specially used for drying agricultural feed such as forage, alfalfa, straw, corn stalks, etc. The feed dryer adopts a multi-layer net belt conveying method to make the forage evenly heated during the drying process, thereby maintaining the nutritional content of the feed, extending the storage period, and improving the feeding effect. The animal feed dryer is widely used in livestock farms, feed processing plants, agricultural products deep processing enterprises and other fields.

Working principle of feed dryer

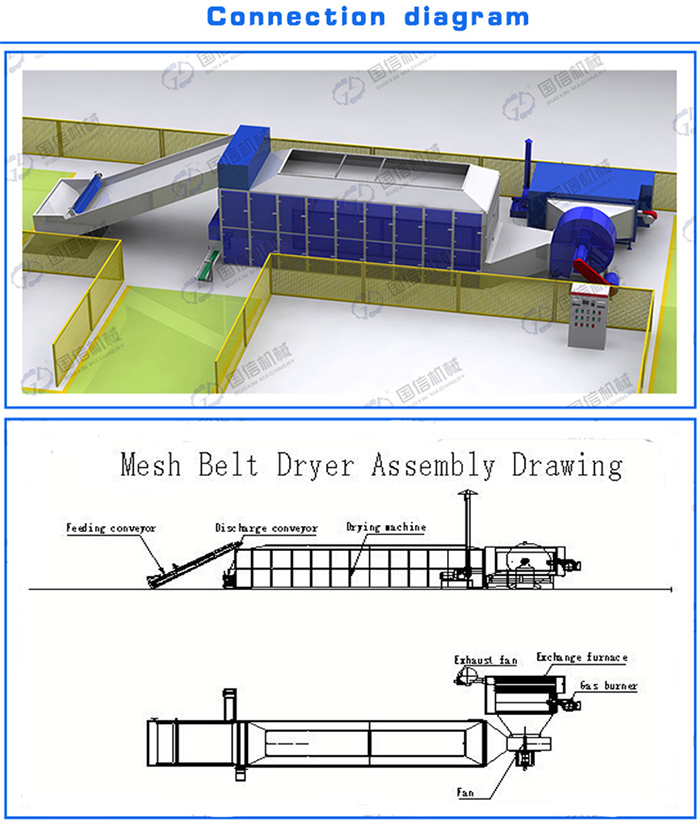

The forage net belt dryer adopts the principle of hot air circulation to evenly spread the wet forage on the multi-layer net belt, and the hot air penetrates the forage layer from bottom to top, so that the moisture gradually evaporates and is discharged, and finally achieves the purpose of drying. The equipment adopts an automatic control system, which can adjust the drying temperature, air volume, net belt speed and other parameters to meet the drying needs of forage with different moisture content.

Features of animal feed dryer

High efficiency and energy saving: It adopts multi-layer net belt circulation drying, with high thermal energy utilization rate, which saves more than 30% energy than traditional drying methods.

Uniform drying: Multi-level temperature control system ensures uniform heating of forage grass to avoid local overheating or uneven drying.

Intelligent control: PLC automatic control system can accurately adjust temperature, humidity and belt speed to achieve one-button operation.

Retain nutrients: Low-temperature slow drying technology effectively retains nutrients such as protein and vitamins in forage grass.

Environmentally friendly and pollution-free: Adopt closed drying method to reduce dust and exhaust gas emissions, in line with environmental protection requirements.

Wide range of applications: It can dry a variety of forage grasses and crop straws such as alfalfa, royal bamboo grass, sweet elephant grass, corn straw, wheat straw, etc.

Technical parameters of forage dryer (customizable)

Parameters Specifications

Equipment type Net belt continuous dryer

Number of net belt layers 3-5 layers (customizable)

Drying temperature 40℃-100℃

Processing capacity 0.5-10 tons/hour (customized according to needs)

Heating method Gas, coal, biomass pellets, electric heating, etc.

Water evaporation 10%-50% (adjustable)

Operation mode Continuous conveying and drying

Control system PLC intelligent control

After-sales service of forage dryer

We provide comprehensive after-sales support, including equipment installation, operation training, regular maintenance, technology upgrades, etc., to ensure that your forage net belt dryer operates efficiently and stably.
