With the booming development of the health industry and the condiment market, the demand for high-quality, standardized deep-processed ginger products (such as dehydrated ginger slices, ginger powder, and ginger oleoresin) is increasing daily. An efficient, stable, and intelligent continuous production line is the core guarantee for enhancing product added value and seizing market opportunities. Below, we will provide a detailed analysis of the complete process and significant advantages of a fully automated ginger processing production line integrating bubble cleaning, peeling, air drying, slicing, drying, grinding, and packaging.

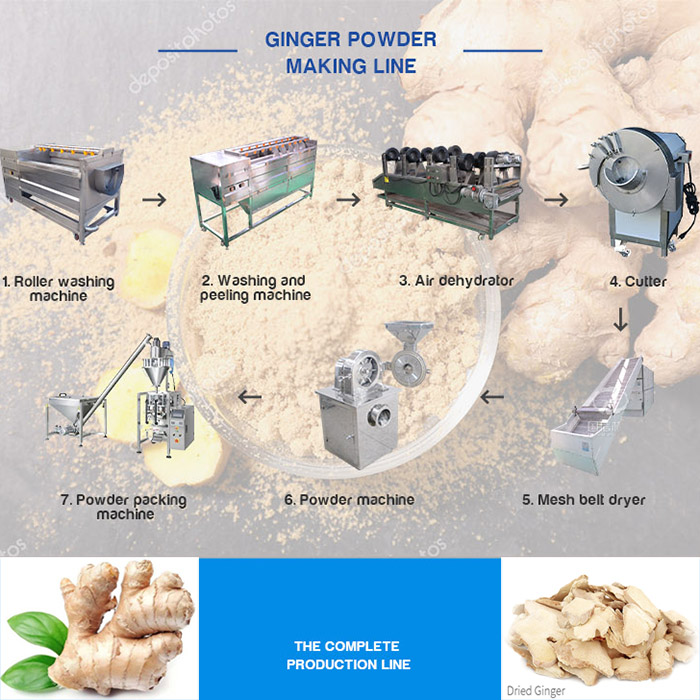

Ginger processing line

I. Core Process Flow of the Fully Automated Production Line

This production line adheres to the design principles of continuous, modular, and low-damage operation, ensuring that every step, from raw materials to finished products, is efficient and controllable.

1. Raw Material Pretreatment and High-Efficiency Cleaning Section

• Bubble Spray Combined Cleaning:

First, the raw ginger is fed into the bubble washing machine via an elevator. This process utilizes the impact force generated by the bursting of air bubbles in water to effectively loosen and peel away stubborn mud and sand adhering to the surface and crevices of ginger. Simultaneously, the buoyancy of the bubbles prevents the ginger from breaking due to collisions during feeding. Subsequently, the material enters a high-pressure spray washing zone, where multi-angle, high-pressure water spray thoroughly washes away the loosened mud and sand. This combined cleaning mode of “first loosening with air bubbles, then high-pressure washing” is key to achieving highly efficient and clean ginger without mechanical damage.

• Water-saving self-circulating system:

Modern production lines are equipped with a standard water circulation filtration system. After washing, the wastewater undergoes multi-stage treatment through a primary filter, filter cloth, and a sedimentation tank. The upper layer of clear water enters a clean water storage tank and can be recycled for spray washing under control system instructions, greatly reducing water consumption and wastewater discharge costs, in line with green production principles.

2. Peeling, slicing, and surface dehydration section

• Gentle peeling: After washing, the ginger can proceed to the peeling station according to product requirements (whether to retain the ginger peel). Advanced peeling machines employ mechanical friction or gentle brushing to remove the outer skin while minimizing damage and waste to the ginger flesh.
• Precise Slicing: Peeled ginger is conveyed to the slicer. This professional, multi-functional slicer is made of food-grade stainless steel and features interchangeable blades of different sizes (e.g., slicing and shredding blades) to achieve precise and uniform control over the thickness and shape of the ginger slices (e.g., standard slices around 4 mm). Dual-frequency speed control allows independent control of the conveyor belt and blade speed, ensuring smooth and aesthetically pleasing cuts, and significantly reducing manual labor.
• Rapid Drying: After slicing, the ginger slices retain a large amount of moisture. Direct drying would greatly increase energy consumption and time. Therefore, before entering the dryer, the ginger slices pass through an air-drying machine. This equipment uses a high-volume, low-noise fan and, through multiple tumbling conveyors and a reverse airflow device, quickly and evenly removes free water droplets from the ginger slices, achieving a water removal rate of over 99%. This step significantly shortens subsequent drying time and prevents water stains on the dried product surface, improving the finished product’s appearance.

3. Core Drying and Deep Processing Sections

• Rapid and Uniform Drying:

The surface-dried ginger slices enter the heat pump drying machine. Modern dryers utilize clean air high-volume convection drying technology, simulating natural air drying principles. Temperature zones are controllable (achieving first-in, first-out), ensuring uniform drying of the ginger slices. Compared to traditional heat pump drying rooms, this powerful convection drying method increases efficiency several to ten times, significantly reduces energy consumption, and better preserves the natural color and flavor of the ginger. The dryer is widely applicable, with heat sources including coal, biomass pellets, natural gas, or electricity, and is equipped with an automatic temperature control system.

• Ultra-fine Grinding and Automated Packaging:

Grinding mill: The dried ginger slices are then ground in an ultra-fine grinding mill. Professional ginger grinding mills. are made of stainless steel, with a high-speed rotating spindle. The grinding fineness can be adjusted between 12-500 mesh, with production capacity ranging from tens to thousands of kilograms per hour, meeting the production needs of different specifications of ginger powder.

Packaging: The final ginger powder is packaged using a fully automatic powder packaging machine. This equipment integrates spiral filling, automatic bag making, weighing, sealing, and cutting functions. Utilizing a servo motor drive and a specific gravity tracking weighing system, it adapts to changes in material density, achieving high-precision (e.g., ±0.5%~2%) rapid packaging at a speed of 30-60 bags/minute. The entire process is sealed with dust control, meeting food hygiene standards.

II. Core Advantages and Value of the Integrated Production Line

The fully automated production line integrating the above modules offers processing enterprises multi-dimensional competitive advantages:

1. High Automation and Efficiency Revolution

From cleaning to packaging, the entire line is connected by elevators and conveyor belts, enabling continuous operation and significantly reducing manual handling and monitoring. The efficiency of key workstations, such as slicing and packaging, far exceeds manual labor. For example, one slicing machine can replace the workload of 6-8 people per hour, and the packaging machine can reach speeds of dozens of bags per minute, significantly reducing labor intensity and labor costs.

2. Superior Product Quality and Consistency

Standardized equipment processes ensure a high degree of consistency and stability in product quality (ginger slice thickness, dryness, powder fineness, and packaging weight). The non-destructive cleaning and rapid, uniform drying technology maximizes the preservation of ginger’s active ingredients, natural color, and flavor, resulting in a product with excellent rehydration properties and superior quality.

3. Significant Energy Saving, Consumption Reduction, and Environmental Benefits

The water circulation system in the cleaning process significantly saves water resources; the air dryer pre-removes surface water, combined with efficient drying technology, reducing overall heat consumption to an extremely low level. The modular design also allows for flexible configuration of the production line according to capacity requirements, avoiding equipment idleness and energy waste.

4. Strong Process Flexibility and Scalability

This production line is modular, allowing for flexible adjustments or skipping of certain stages depending on the final product direction (e.g., specifically for dehydrated ginger slices, ginger powder, or ginger oil). The equipment is primarily made of food-grade stainless steel, facilitating cleaning and maintenance, and meeting GMP and other certification requirements, while also providing space for future product upgrades or the production of other root vegetables, fruits, and vegetables.

In summary, this fully automated ginger processing production line, through the organic combination of scientifically planned processes and advanced equipment, not only achieves efficient transformation from field raw materials to high-end products, but also builds solid core competitiveness in quality control, cost control, and flexible production.

If you need a Ginger processing line, please leave us a message to Eve@guoxinmachinery, and our technical team will contact you promptly.
