Release time：2026-03-27
In late 2024, a leading agricultural enterprise in Sri Lanka required a transition from traditional sun-drying to a controlled industrial process. The tropical climate of Sri Lanka, characterized by high humidity and seasonal monsoons, often leads to post-harvest losses and inconsistent quality in medicinal herbs and livestock forage.
Client Objectives:
Consistency: Maintain the active ingredients (alkaloids/essential oils) in herbs through precise temperature control.
Scalability: Move from batch processing to a continuous 24-hour production cycle.
Policy Alignment: Meet the Sri Lankan Department of Agriculture’s standards for export-grade herbal products.

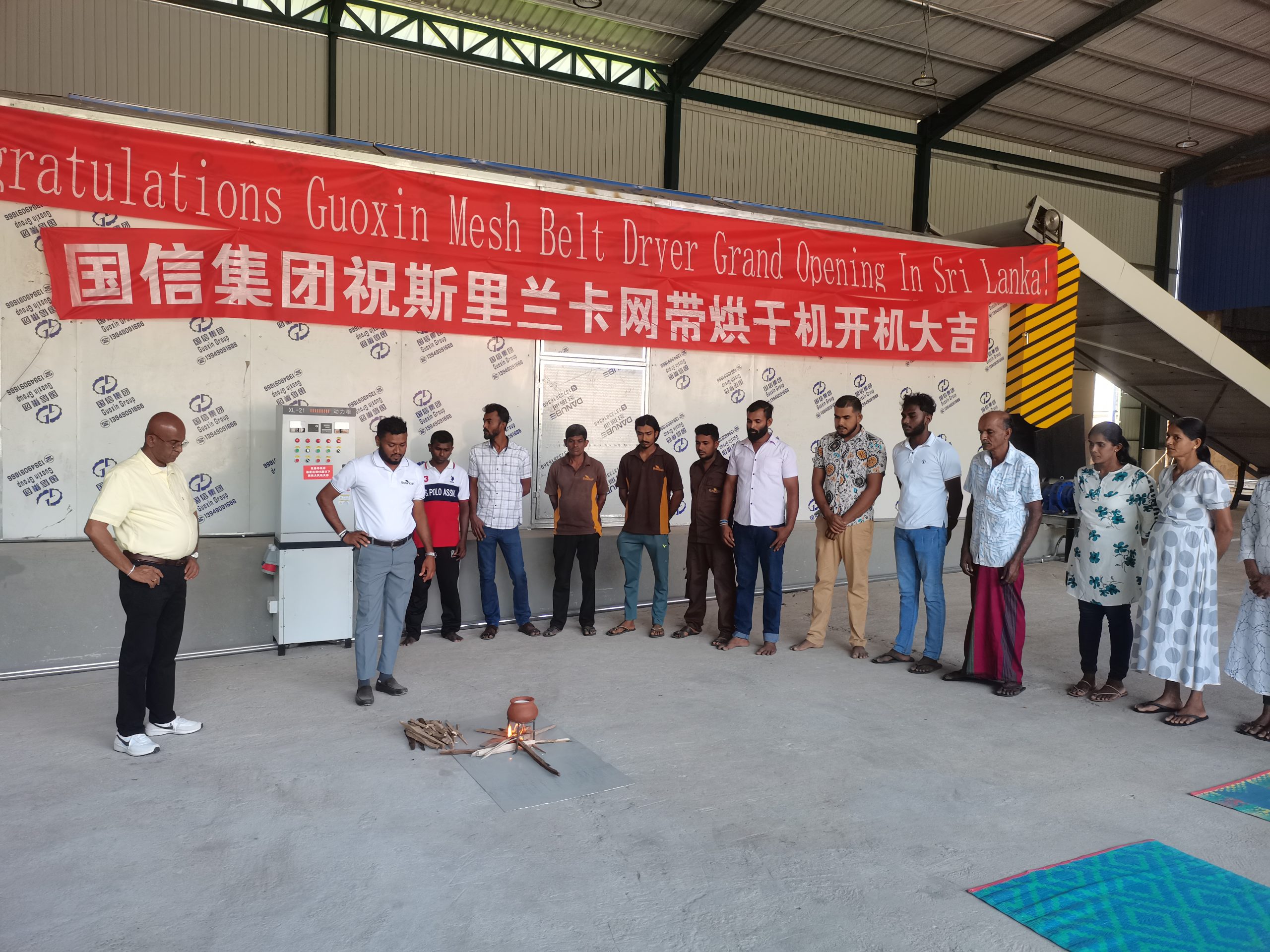

Sri Lanka Guoxin 15-ton mesh belt hay dryer installation site
Guoxin Group engineered a customized Multi-Layer Mesh Belt Dryer system specifically calibrated for the high-moisture content of freshly harvested forage and delicate herb structures.
Core Equipment: Guoxin 5-Layer Stainless Steel Mesh Belt Dryer.
Heat Source: Biomass Heat Exchanger (utilizing local agricultural waste to minimize fuel costs).
Material Compatibility: Designed for diverse feedstocks, including Moringa leaves, Lemongrass, and various Ayurvedic herbs.
Control System: Integrated PLC cabinet for independent belt speed and temperature zone regulation.
👉 Custom Mesh Belt Drying Equipment
| Parameter | Technical Specification / Value |
| Model Series | Guoxin Heavy-Duty Mesh Belt Series (GXB-15) |
| Effective Drying Area | $120\text{ m}^2$ – $150\text{ m}^2$ (Multi-layer configuration) |
| Number of Layers | 5 Layers (Standard for Herbal/Forage processing) |
| Belt Width | $2.0\text{ m}$ – $2.5\text{ m}$ |
| Belt Material | Food-grade SUS304 Stainless Steel (Acid/Alkali resistant) |
| Drying Temperature | $40\text{°C}$ – $120\text{°C}$ (Fully adjustable via PLC) |
| Heating Source | High-efficiency Biomass Heat Exchanger (Optional: Steam/Gas) |
| Installed Power | $45\text{ kW}$ – $55\text{ kW}$ (Including fans and transmission) |
| Moisture Evaporation | $\sim 500\text{ kg/h}$ to $800\text{ kg/h}$ (Material dependent) |
| Retention Time | $30\text{ min}$ to $180\text{ min}$ (Frequency conversion control) |
| Dimension ($L \times W \times H$) | Approx. $15.0\text{ m} \times 3.2\text{ m} \times 3.8\text{ m}$ |
| Compliance Standards | CE, ISO9001, GMP (Export Grade) |
(Section reserved for user-supplied diagram)
The process involves: Raw Material Cleaning → Automated Feeding → Multi-stage Dehydration (Temperature Gradient: $40°C$ to $70°C$) → Cooling → Moisture Testing → Automated Packaging.
| Parameter | Data Detail |
| Input Capacity | 15,000kg (15 Tons) per 24 hours |
| Moisture Reduction | From 75%–80% down to <10% |
| Drying Cycle Time | 120 – 180 minutes (adjustable) |
| Energy Consumption | ~30% reduction compared to traditional diesel-fired ovens |
| Product Grade | 99% color retention; meets EU/US export standards |
Investment Recovery:
Based on the local market price for high-quality dried Moringa and herbs in 2017, the plant achieved a Full Return on Investment (ROI) within 14–16 months.
Local Policy Adaptability:
The system’s use of a biomass heat exchanger aligns with Sri Lanka’s “Sustainable Energy Authority” incentives, which encourage reducing reliance on imported fossil fuels in favor of local agricultural byproducts (coconut shells, wood chips).
👉Request a Custom ROI Analysis for Your Region
“The transition to Guoxin’s mesh belt system eliminated our dependency on weather conditions. The ability to control the temperature gradient ensures our herbs retain their medicinal properties, which has allowed us to secure higher-value export contracts in Europe.” — Project Manager, Sri Lanka Site.
