5TPD Integrated Apricot Processing & Intelligent Heat Pump Drying – Uzbekistan

Project Overview & Client Background

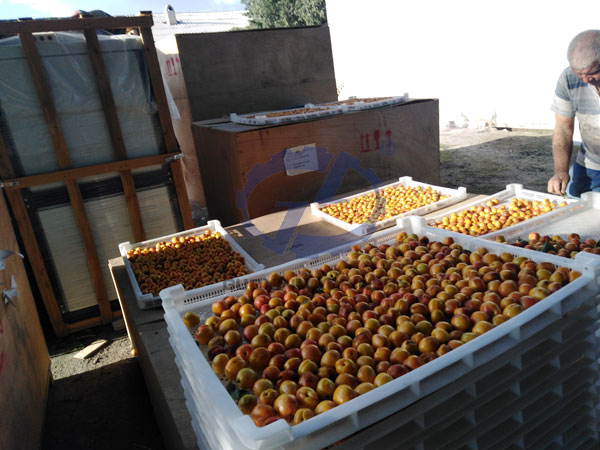

Uzbekistan is one of the world’s leading producers of high-quality apricots. Traditionally, sun-drying was the primary method, which often resulted in dust contamination and inconsistent moisture levels. The client required a modern, food-grade processing line to meet stringent international export standards for dried stone fruits.

Client Objectives:

• Automation: Reduce manual labor in the pitting and splitting stage.

• Precision: Maintain the natural color and “sulfur-free” quality through precise temperature/humidity control.

• Versatility: The ability to process other local seasonal crops (grapes, plums, and vegetables) during the apricot off-season.

Comprehensive Production Line Configuration

Guoxin Group provided an end-to-end EPC solution, covering every stage from raw fruit intake to final vacuum packaging.

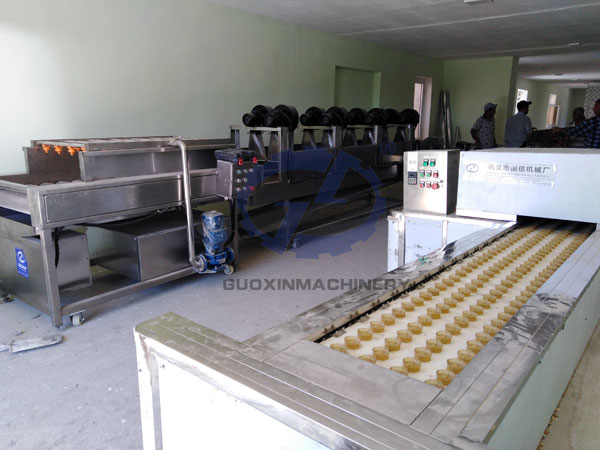

• Pre-treatment Section:

  • Bubble Washing & Impurity Removal: Ensures a 100% clean raw material surface.

  • Automated Half-Splitting & Pitting Machine: High-speed mechanical pitting with minimal fruit flesh loss.

  • Blanching & Sugar Soaking System: Prepares the fruit for optimal color retention and texture.

• Drying Section:

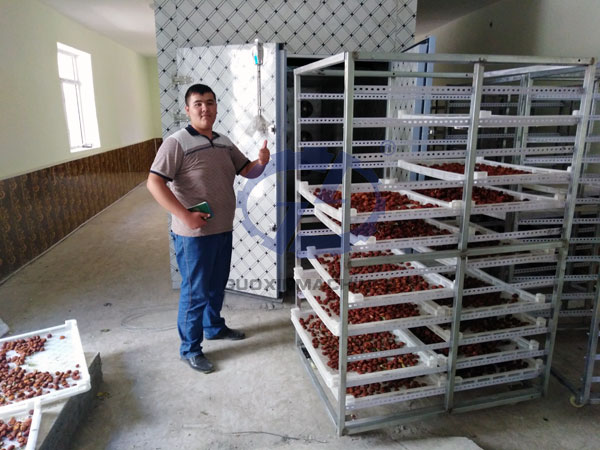

  • Core Equipment: Guoxin Air-Energy Heat Pump Drying Room.

  • Intelligent Control System: PLC-based management of temperature, humidity, and airflow cycles.

• Post-processing: Industrial vacuum packaging to extend shelf life for export.

Process Flowchart

(Section reserved for user-supplied diagram)

Sequence: Washing → Impurity Removal → Pitting/Splitting → Sugar Soaking → Blanching → Air Drying (Surface) → Heat Pump Drying → Vacuum Packaging.

Technical Performance & Project Data

Cost-Benefit & ROI Analysis

Economic Efficiency:

The heat pump system utilizes ambient air heat, significantly lowering the “cost-per-kilogram” of dried apricots compared to gas or electric resistance drying. By integrating the automated pitting machine, the client reduced the labor force required for the pre-treatment stage by $80\%$.

Investment Return:

Due to the high market value of “Premium Grade” dried apricots in the Russian and European markets, the client achieved full ROI within 10–12 months of operation.

Regional Policy Adaptability:

This project aligns with Uzbekistan’s “Agriculture Development Strategy 2020-2030,” which promotes the value-added processing of local produce. The energy-efficient nature of the heat pump also meets the requirements for local green-energy technology grants.

Customer Feedback

“The intelligent control system is the most valuable part of this line. We can set the parameters for different apricot varieties and walk away. The consistency in color and moisture content has allowed us to increase our export prices by 15% compared to our previous sun-dried batches.” — Production Director, Uzbekistan Site.

Cooperation Process

1. On-site Inspection: Client visited Guoxin’s 100,000 sqm facility to verify pitting and drying efficiency.

2. Custom Design: Engineering of a production line layout tailored to the client’s existing factory dimensions.

3. Logistics & Installation: Sea-freight delivery followed by Guoxin’s technical team onsite for assembly and commissioning.

4. Operational Training: Comprehensive staff training on PLC programming and preventative maintenance.
