Industrial Banana Dryer Machines & Automated Processing Lines

Industrial Banana Dryer Machines & Automated Processing Lines

In commercial fruit snack manufacturing and export processing, dehydration efficiency directly dictates production margins, product color retention, and shelf stability.

Bananas have high sugar and moisture content, making them highly susceptible to enzymatic browning and caramelization if exposed to improper thermal profiles.

Guoxin designs and integrates engineered industrial banana drying systems with capacities ranging from 100 kg/day to 10 tons/day.

We maintain precise temperature and relative humidity controls to ensure uniform final moisture content while preserving the natural color, nutrients, and texture required by global market standards.

---

Commercial Drying Technology Configurations



To fulfill specific scale requirements and processing goals, we manufacture two primary industrial configurations for banana processing plants:



A. Automated Multi-Tier Mesh Belt Dryer for Continuous Output



Engineered for continuous, 24/7 large-scale snack manufacturing operations.

• Throughput Capacity: 2 tons to over 10 tons per day.
• Mechanical Mechanism: Sliced bananas are fed via an automated leveling conveyor onto a multi-tier food-grade stainless steel conveyor belt system. As the material moves along an S-shaped path and drops down to successive layers, it flips naturally. This continuous movement exposes all surface areas to uniform convective airflow, eliminating localized wet spots and surface sticking.

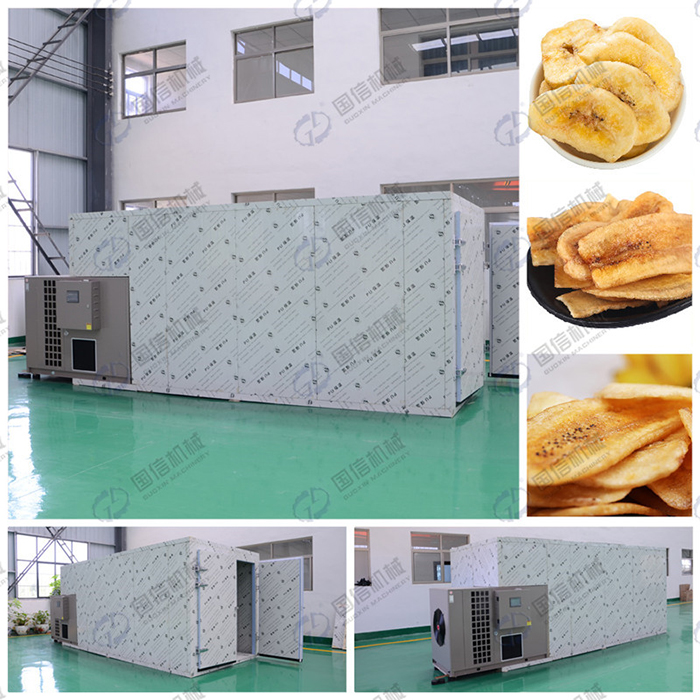

B. Closed-Loop Heat Pump Dehumidification Chambers

A batch-type drying format optimized for smaller production scales, precision R&D lines, or high-value specialty cultivars.

• Throughput Capacity: 100 kg to 2,000 kg per batch.
• Mechanical Mechanism: Utilizes air-source heat pump technology inside an insulated modular chamber. The system extracts moisture from the recirculated air, providing precise temperature control at lower energy thresholds.

---

Technical Specifications & Engineering Parameters

The following matrix outlines the operational configurations available for industrial food processing plants.

Technical Parameter	Continuous Multi-Layer Belt System	Heat Pump Batch Chamber
Production Scale Capacity	2,000 kg to 10,000 kg+ / 24 Hours	100 kg to 2,000 kg / Batch
Primary Structural Frame	Heavy-Duty Carbon Steel / Optional SUS304	Double-Sided Insulated Polyurethane Panels
Material Contact Components	Food-Grade SUS304 Stainless Steel	Food-Grade SUS304 Stainless Steel / PP Trays
Compatible Heat Sources	Steam / Natural Gas / Biomass / Heat Pump	Air-Source Electric Heat Pump
Operational Temperature	40°C – 85°C (PLC Adjustable)	40°C – 75°C (PLC Adjustable)
Target Moisture Reduction	From ~75% wet baseline down to <5%	Customizable based on product recipes
System Automation Type	Centralized Siemens/Omron PLC Touchscreen	Multi-Stage Automated PLC Interface

---

Core Processing Challenges

Prevention of Sugar Caramelization & Browning

Bananas contain high concentrations of natural fructose and sucrose, which darken quickly when exposed to temperatures exceeding 70°C.

Our industrial dehydrators utilize medium-to-low temperature processing configurations (55°C to 65°C) combined with high-volume, forced air circulation. This layout removes surface moisture rapidly during the constant-rate drying phase without triggering the Maillard reaction, preserving the natural yellow color of the fruit slices.

Anti-Sticking Conveyor & Tray Design

Due to the high sugar exudation of sliced bananas during initial moisture removal, material adhesion to processing surfaces is a major source of downtime.

Guoxin conveyor lines utilize specialized food-grade SUS304 wire mesh with optional non-stick coatings or high-density polypropylene (PP) batch trays. This reduces product sticking, simplifies automated cleaning cycles, and maintains food hygiene standards.

Elimination of Case Hardening

If the drying air is too dry or too hot initially, the outer surface of the banana slice dries instantly, creating an impermeable crust that traps moisture inside the core.

Our PLC systems manage humidity curves dynamically, allowing the moisture migration rate from the core to match the evaporation rate from the surface.

---

Thermal Efficiency & Operating Expenditures

Industrial fruit processing plants prioritize equipment selection based on utility metrics. Our air-energy heat pump modules drastically lower operational overhead compared to old-style electric resistance elements.

• Latent Heat Recycling: During dehumidification, hot, moisture-laden air is directed across an internal evaporator coil. The system condenses the moisture out as a liquid discharge, captures the latent heat of vaporization, and feeds that thermal energy back into the dry air stream.
• High Coefficient of Performance (COP): The heat pump utilizes electrical power solely to drive the compressor and fans, extracting up to three-quarters of its required thermal energy directly from the ambient air. This translates to an efficiency gain that reduces total electricity usage by up to 60% to 75% relative to open-vent electrical systems.

---

Application areas of Banana Dryer

• Fruit processing: production of dried bananas, banana chips, banana crisps, and other dried fruit snacks.
• Food processing industry: used to produce convenience foods, ready-to-eat fruits, etc.
• Agriculture and export trade: used to improve the storage and transportation capacity of bananas to prevent them from rotting during transportation.
• Supermarkets and e-commerce: provide snacks such as dried bananas to meet market demand.

Banana dryer is an ideal piece of equipment for improving the quality of banana drying, extending storage time, and expanding market potential. Its high efficiency, energy saving,g and intelligent features make it widely used in the field of fruit drying and processing, especially for the preservation and processing of seasonal fruits such as bananas.



---

Full Turnkey Processing Line Integration

For industrial operators expanding production scale, Guoxin Machinery provides full Engineering, Procurement, and Construction (EPC) services to deliver synchronized production flows:

---

FAQ

Q1: What is the average drying curve and retention time for banana chips?

A: Depending on slice thickness (typically 3mm to 5mm) and pre-treatment processing (such as ascorbic acid or sugar-syrup dipping), complete dehydration down to a brittle crisp texture (<5% moisture content) generally requires 6 to 12 hours in a batch chamber system. Continuous mesh belt systems optimize this timeframe through continuous material flipping and zoned temperature stages, accelerating mass transfer.

Q2: How does the system handle different output specifications like slices versus powder?

A: The drying parameters are managed entirely via software presets in the PLC control panel. For banana chips or slices, the system uses a gentle airflow velocity and lower temperatures to maintain structural integrity. For banana powder production, the raw material is typically processed as a mash or slice mix dried to a highly brittle state (<3% moisture) to ensure efficient throughput in downstream industrial grinding and milling machinery.

Q3: What are the primary facility layout and utility requirements for a continuous line?

A: A continuous mesh belt line requires an industrial floor space ranging from 12 to 28 meters in length, depending on output demands. Electrical infrastructure requires standard industrial 3-Phase power (380V/50Hz or regional equivalents). If a factory possesses an existing steam boiler or natural gas line, our thermal exchange systems can be custom-fabricated to utilize those utilities, minimizing total equipment connection costs.

Q4: How does your equipment ensure compliance with international food import regulations?

A: All internal surfaces, structural supports, air baffles, and chain systems that interact with the product are fabricated strictly from certified SUS304 stainless steel. The entire machinery design eliminates blind corners where organic particles could collect, supporting high-pressure sanitation and matching the hygiene compliance codes enforced by the FDA, CE, and European food safety agencies.

---

Engineering Consultation & Material Testing Services

Henan Guoxin Machinery provides technical evaluation before final equipment fabrication.

• Material Evaluation: Operators can submit regional banana varieties to our factory test lab to determine precise moisture evaporation ratios and performance values.
• On-Site EPC Services: Complete factory layout design, utility mapping, installation engineering, and staff training handled globally by our senior service technical team.
