For commercial spice processors and agricultural exporters, chili drying requires a strict balance between thermal efficiency and quality preservation. Drying Chili with Stable Color & Yield Matters More Than Speed. Chili drying requires precise temperature and airflow control to avoid darkening and capsaicin loss.

As an established EPC (Engineering, Procurement, and Construction) partner, Guoxin Machinery provides complete, turnkey chili processing lines.

We engineer systems that handle everything from raw material intake to final moisture stabilization, ensuring your product retains its premium color, pungency, and market value.

Introduction of the chili drying machines

• Chili drying machine（Mesh Belt Dryer） is a high-efficiency, energy-saving, environmentally friendly drying equipment widely used for many kinds of chili, such as Cayenne peppers, Tabasco peppers (a cultivar of Capsicum annuum), Habanero peppers, Cubanelle peppers, Bird’s eye chilies, and Choricero. The chilli drying machine provides a reliable solution for chilli pepper drying. Our chilli dryer machine price is reasonable.
• Working Principle of chilli drying machine

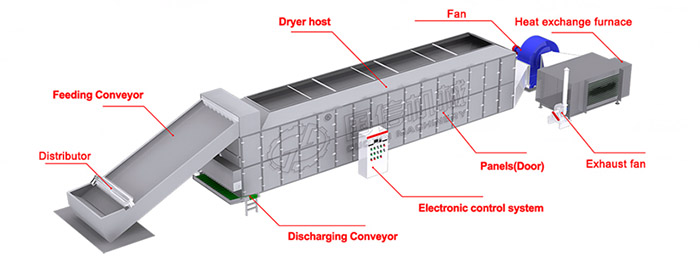

  The chili drying machine utilizes the hot air produced by the heat furnace as the drying medium. Through the hot air distribution unit, the hot air is transported to the mesh belt.
  The hot air volume, mesh belt running speed, temperature, and humidity can be adjusted by the electric control system to ensure the continuous and automatic operation.
  The chili drying machine not only dries according to heat, but also according to strong air; the air volume can reach 40000 cubic meters per hour.

Two Core Drying Technologies to Match Your Scale

Depending on your daily processing volume, factory footprint, and fuel availability, we offer two distinct commercial drying methods:

A. Continuous Multi-Layer Mesh Belt Dryers

• Operation: Fully automated, 24/7 continuous production.
• Capacity: Designed for heavy-duty industrial outputs ranging from 2 tons to over 20 tons per day.
• Mechanism: Chili peppers travel along an S-shaped path through 3 to 5 layers of stainless steel mesh belts. The material naturally flips as it transitions between layers, ensuring comprehensive airflow exposure and eliminating localized wet spots.

B. Air-Energy Heat Pump Drying Chambers

• Operation: Batch-type processing with high-density insulation.
• Capacity: Ideal for small-to-medium enterprises or high-value varieties (e.g., Bird’s Eye, Habanero) processed in batches from 500kg to 3 tons.
• Mechanism: Utilizes advanced dehumidification loops that absorb environmental heat, dropping electricity expenditure significantly compared to traditional electrical resistance ovens.

Complete Turnkey EPC Integration

We don’t just sell standalone drying units. Guoxin Machinery specializes in fully integrated processing configurations designed to reduce manual labor costs and maintain strict food safety standards:

• Uniform Material Distribution: The feeding conveyor utilizes an adjustable leveling gate to distribute the chilis evenly across the mesh belt. Consistent bed depth prevents air short-circuiting and guarantees uniform batch moisture.
• Hygiene & Durability: All material-contact components are fabricated from food-grade SUS304 stainless steel to resist organic acids and ensure export compliance.

Technical Specifications & Operating Parameters

Core Industrial Advantages

• Indirect Heating Safety: Whether utilizing gas, biomass, or steam, our thermal exchange units ensure that the drying air is pure and entirely isolated from combustion exhaust. This eliminates the risk of soot, smoke, or chemical contamination on the peppers.
• Closed-Loop Latent Heat Recovery: Our heat pump configurations capture latent moisture heat during the exhaust cycle and pump it back into the thermal loop, minimizing energy waste even in cold or humid ambient environments.
• Simplified Maintenance Layout: Engineered with large, dual-direction insulated inspection doors, allowing plant operators quick access to internal belts, air ducts, and fan assemblies for routine clean-downs.

FAQ:

Q1: How do you prevent chili peppers from losing their bright red color during continuous drying?

A: Color degradation is caused by high temperatures caramelizing sugars and breaking down pigments. Our systems rely on medium-to-low temperature dehydration (55℃-65℃) paired with a high-volume air displacement system (40,000^3/h). This setup removes surface and core moisture rapidly without reaching temperatures that trigger thermal browning or capsaicin loss.

Q2: Can the mesh belt configuration handle both whole chilis and sliced/shredded chilis?

A: Yes. We customize the aperture size of the SUS304 wire mesh based on your primary raw material specifications. For facilities that process both whole peppers and sliced variations, we supply specific mesh weaves that prevent seeds and smaller pepper pieces from falling through the conveyor layers.

Q3: What are the primary facility requirements for installing a complete chili processing line?

A: Continuous mesh belt lines require a flat warehouse floor space ranging from 15 to 35 meters in length, along with access to standard industrial 3-phase power. During the engineering phase, our team provides custom 3D factory layout layouts mapping out exact connection points for utilities, drainage, and exhaust venting.

Q4: How does your system control internal relative humidity?

A: The drying line is equipped with electronic moisture sensors linked to a centralized PLC control unit. When internal relative humidity levels cross the optimized recipe threshold, automated exhaust fans or heat-pump condenser modules engage instantly to purge moisture while maintaining an even temperature baseline inside the chamber.

Tailored Engineering & Global Support

We works directly operators to match equipment configurations to real-world capital and processing goals.

• Material Lab Testing: Send a sample of your regional pepper(or any other materials) variety to our factory for a verified drying curve and moisture evaluation.
• Full EPC Project Execution: On-site installation, system calibration, and operator training managed globally by senior field engineers.
