How do commercial herbal processors handle seasonal harvest peaks while preserving active pharmaceutical compounds and natural green-golden hues?

Forsythia suspensa (Lian Qiao, a core raw material in Traditional Chinese Medicine (TCM) and natural extraction industries, requires rapid, precise drying immediately following harvest. Freshly picked Forsythia capsules contain high surface and internal moisture. Delayed processing or improper thermal drying leads to mold contamination, seed rupture, enzymatic browning, and significant loss of volatile active ingredients (such as Phillyrin and Forsythoside A).

On July 30, 2026, Guoxin Machinery’s continuous-mesh-belt herbal-drying project went live in Shanxi Province—China’s primary cultivation hub for wild and cultivated Forsythia.

This project case showcases our heavy-duty Continuous Multi-Layer Mesh Belt Dryer System, designed specifically for continuous bulk dehydration during high-intensity harvest seasons.

1. On-Site Operational Workflow & System Architecture

The Shanxi installation demonstrates a fully automated, continuous material handling loop engineered to eliminate bottleneck manual labor:

Key Stage 1: Automated Infeed & Uniform Layering

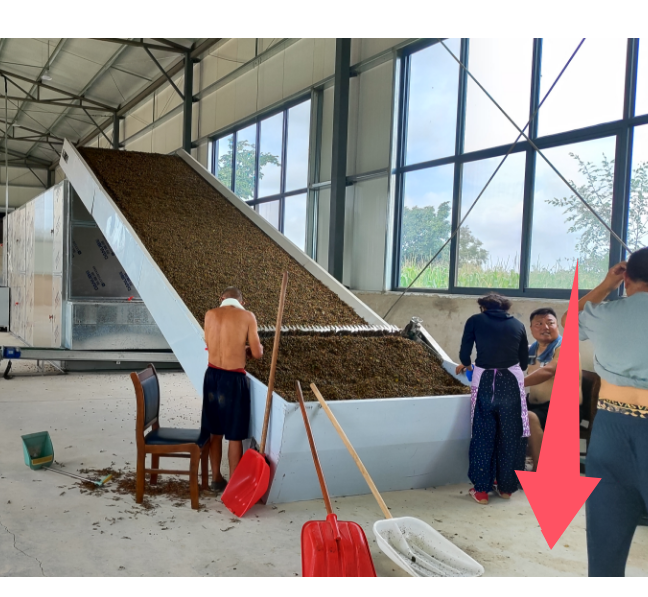

• Incline Belt Elevator: Raw green/brown Forsythia capsules are fed into an inclined belt conveyor that continuously elevates material to the dryer inlet.

• Mechanical Spreader & Leveler: An integrated distribution rake levels the material bed across the stainless steel mesh belt at a uniform thickness. This prevents clumping and guarantees even hot-air penetration across every tray layer.

Key Stage 2: Multi-Zone Thermal Convection Chamber

• Insulated Modular Cabinet: Built with heavy-duty insulated stainless steel panels, the chamber maintains internal heat with minimal thermal loss.

• Forced Hot-Air Draft System: High-volume centrifugal draft blowers continuously circulate temperature-regulated hot air upward and downward through the moving product bed.

• Gentle Multi-S-Path Travel: Material cascades across multiple internal tiers. As Forsythia falls gently from the top belt to lower belts, it turns naturally, exposing all sides to warm air without mechanical crushing.

Key Stage 3: Automated Outfeed & Quality Inspection

• Continuous Discharge Conveyor: Completely dried Forsythia is discharged out of the chamber base via a dedicated collection belt directly into bulk handling containers.

• Pristine Dried Quality: Output samples display intact capsules, crisp structure, zero scorching, and a natural golden-brownish green finish.

2. On-Site Performance Metrics

Observations and trial readings from the Shanxi production floor:

3. Key Engineering Advantages for Herbal Processors

1. High Daily Tonnage Throughput: Unlike static tray drying rooms that require manual loading and unloading, this continuous line processes several tons per day with minimal operator intervention.

2. Precise PLC Thermal Regulation: Dedicated control panels allow operators to adjust belt speed, blower velocity, and multi-zone heating curves based on raw material moisture variations.

3. Flexible Energy Adaptability: The drying system can be integrated with Air-Source Heat Pumps, Clean Natural Gas Burners, Biomass Furnaces, or Industrial Steam, allowing processors to select the most economical local energy source.

4. HACCP & GMP Compliance: Stainless steel contact surfaces (SUS304) ensure the processed herbs meet strict medicinal, food, and export safety standards without heavy metal contamination.

FAQ

Q1: How does temperature control affect the active ingredients of Forsythia during drying?

A: Forsythia contains temperature-sensitive medicinal constituents (Phillyrin and Forsythoside A). High temperatures above 75℃ degrade these active compounds and darken the fruit shell. Guoxin’s multi-tier mesh dryer uses zoned low-temperature drying (50℃ -65 ℃), ensuring maximum medicinal potency retention and premium market valuation.

Q2: Can this mesh belt dryer line be used for other medicinal plants or seeds?

A: Yes. The variable-frequency drive (VFD) speed control and adjustable temperature settings make this machine highly versatile. It is widely used for processing honeysuckle (Jin Yin Hua), chrysanthemum, ginger slices, roots, seeds, and various traditional herbs.
