How do commercial Chinese herbal medicine processors maintain uninterrupted, high-tonnage seed drying during rainy harvest seasons while protecting delicate seed lipids and active medicinal constituents?

Cypress seeds (Platycladi Semen ) are widely used in Traditional Chinese Medicine (TCM) for their calmative, health-promoting properties. Harvested during late summer, raw green cypress seed cones carry high moisture levels and thick outer hulls.

If wet cypress seeds are left outdoors during humid or rainy weather, rapid mold infestation, heating fermentation, and rancidity of natural seed oils occur within hours. Traditional open-air sun drying is completely incapable of meeting modern GMP/HACCP standards or handling peak seasonal delivery volumes.

On August 11, 2026, Guoxin Machinery’s complete Automated Continuous Cypress Seed Drying & Cleaning Line was commissioned at a major TCM processing facility in Shanxi Province, China.

Despite heavy rain outside on the delivery yard, the indoor continuous production line operated at full capacity, processing tons of raw green cypress seed pods into high-grade dried kernels.

1. End-to-End Automated Processing Architecture

The Shanxi project features a fully integrated industrial loop—from bulk raw material receiving to automated cleaning, multi-tier drying, seed hull winnowing, and final bulk packaging:

Stage 1: Bulk Material Handling & Pre-Cleaning

• Heavy-Duty Wheel Loader Infeed: Freshly harvested raw green cypress cones are unloaded directly into bulk storage heaps. A heavy wheel loader scoops bulk material directly into the main steel receiving hopper.

• Rotary Drum Cleaning Screen: Cones pass through a high-torque rotary drum trommel that filters out twigs, leaves, clumped soil, and unwanted debris prior to drying.

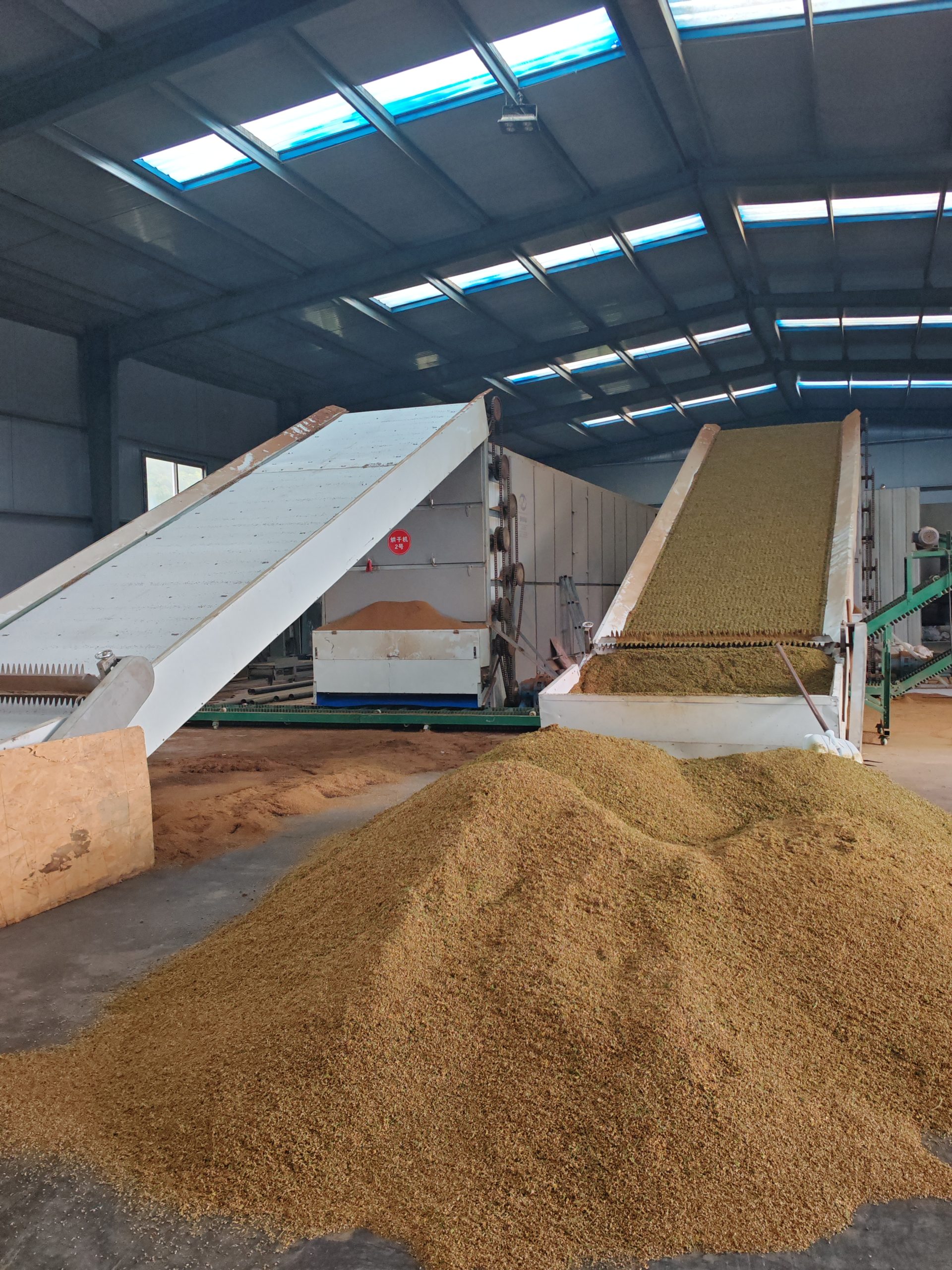

Stage 2: Continuous Multi-Tier Mesh Belt Drying

• Automated Leveling & Feeding: An inclined cleated conveyor feeds the cleaned seeds into the multi-layer dryer inlet. A mechanical spreader rake distributes the material into an even, uniform layer across the top stainless steel belt.

• Zoned Hot-Air Convection Chamber: The material cascades smoothly down through multi-tier S-shaped stainless steel mesh belts. Gentle, temperature-controlled forced air (50℃–68℃) passes vertically through the moving bed, stripping moisture without scorching the oil-rich seed kernels inside.

Stage 3: Secondary Hulling, Air Separation & Ton-Bag Packaging

• Post-Drying Hulling & Winnowing: As the outer cone shells become dry and brittle, they pass through an inline rotary separator and air winnower. The system cleanly splits and separates outer hull fragments from the inner golden cypress seed kernels.

• Bulk Packaging Output: Cleaned, dry, golden-brown seed kernels are continuously conveyed into food-grade bulk ton bags, ready for warehousing or pharmaceutical extraction.

2. Technical Performance Matrix

A direct comparison highlights the efficiency gains observed during the August 11, 2026 Shanxi customer trial:

3. Key Engineering Highlights for Seed Processors

1. Weatherproof 24/7 Continuity: Harvest seasons are short and unpredictable. By eliminating reliance on sunshine, processors avoid catastrophic crop loss during rainy spells.

2. Heavy Industrial Automation: Integration with wheel loaders, industrial hoppers, pre-screeners, and discharge winnowers reduces labor costs while maximizing daily throughput.

3. Multi-Stage Thermal Management: Digital PLC thermal controls prevent overheating, ensuring natural seed fats do not leach or oxidize during moisture reduction.

4. Food-Grade Construction: Stainless steel contact mesh and enclosed drying cabinets comply with national TCM processing, GMP, and export quality standards.

FAQ

Q1: Can small seeds pass through or clog the continuous mesh belt?

A: No. Guoxin engineers select high-density, food-grade SUS304 woven wire mesh screens specifically sized according to the physical dimensions of cypress seed pods and kernels. This ensures optimal air permeability without seed leakage or mesh blinding.

Q2: What heat sources can be integrated with this multi-layer seed dryer?

A: The drying chamber is highly adaptable. Depending on local fuel availability and utility costs, processors can configure the system with Clean Natural Gas, Air-Source Heat Pumps, Biomass Pellets, or Industrial Steam Heat Exchangers.
