In the industrial processing of premium date varieties—such as large-scale Medjool and high-glaze Deglet Nour—the drying phase dictates final market valuation.

Freshly harvested dates present a delicate profile: a high concentration of inverted sugars (fructose and glucose) coupled with an initial moisture content ranging from 25% to 35%.

To satisfy strict international export criteria, this moisture must be systematically reduced to an equilibrium state of 14% to 18%.

Failing to regulate the moisture-evaporation curve leads to immediate quality degradation, including caramelized skin darkening, sugar bleeding (exudation), and pericarp separation (skin puffing).

Guoxin Machinery designs and manufactures integrated, continuous multi-layer mesh belt drying lines powered by low-temperature air-energy heat pumps and regulated steam loops.

These systems are engineered to optimize mass transfer while protecting the natural surface gloss and plump structural integrity demanded by premium global markets.

Overcoming Core Technical Challenges in Premium Date Dehydration

Large-scale data processing requires precision thermodynamics to manage high sugar density and variable skin thickness without altering product morphology.

Prevention of Sugar Bleeding & Caramelization

When dates are exposed to unregulated thermal convective processing exceeding 65°C, the internal sugars liquefy and rupture through the outer skin. This bleeding creates a highly sticky surface that attracts contaminants and undergoes rapid Maillard browning, destroying the signature amber translucent glaze of premium varieties.

• The Guoxin Engineering Solution:

Our processing lines utilize a PLC-Controlled Multi-Stage Temperature Profile. The drying chamber is engineered with independent, insulated thermodynamic zones. The initial zone introduces high-volume, low-temperature air (45°C to 50°C) to establish a steady vapor pressure gradient, pulling moisture from the dense core to the surface without shocking the cells. Subsequent zones incrementally adjust temperatures up to a maximum of 60°C, balancing evaporation rates with the natural sugar crystallization threshold to lock in the native color and high-gloss exterior.

Elimination of Case Hardening & Pericarp Separation

If the drying air is too dry or moving at excessive velocities initially, the outer skin seals prematurely—a defect known as case hardening. The trapped internal moisture eventually expands, causing the skin to separate from the flesh (puffing), which downgrades Medjool dates from export grade to processing grade.

• The Guoxin Engineering Solution:

Our systems integrate Closed-Loop Relative Humidity (RH) Modulation. The centralized control system continuously reads humidity levels within each chamber zone. By recycling a precise ratio of humid process air back into the intake loop during the early drying phases, the system maintains a soft, permeable skin structure. This allows uniform volume shrinkage where the pericarp remains tightly adhered to the internal fruit pulp.

Technical Specifications & Engineering Parameters

The matrix below outlines the industrial configurations for Guoxin continuous multi-layer conveyor drying plants optimized for high-tonnage date processing operations.

 Operational Expenditures (OPEX) & Return on Investment (ROI)

In regions experiencing high utility tariffs, thermal processing efficiency directly dictates plant profitability.

• Latent Heat Recycling Infrastructure:

Traditional open-vent agricultural dryers continually exhaust heated air into the atmosphere, requiring constant fuel expenditure to warm incoming ambient air. Guoxin’s closed-loop heat pump technology utilizes an industrial refrigeration circuit to condense moisture out of the exhaust airstream. The latent heat released during this condensation phase is captured and transferred directly back to reheat the dry processing air.

• Quantifiable Energy Reductions:

This configuration achieves a high Coefficient of Performance (COP of 3.8 to 4.2). Operational data from plant installations demonstrates 60% to 75% energy savings over conventional open-loop electrical resistance heaters or direct oil-fired burners, significantly lowering the overall OPEX per dry ton.

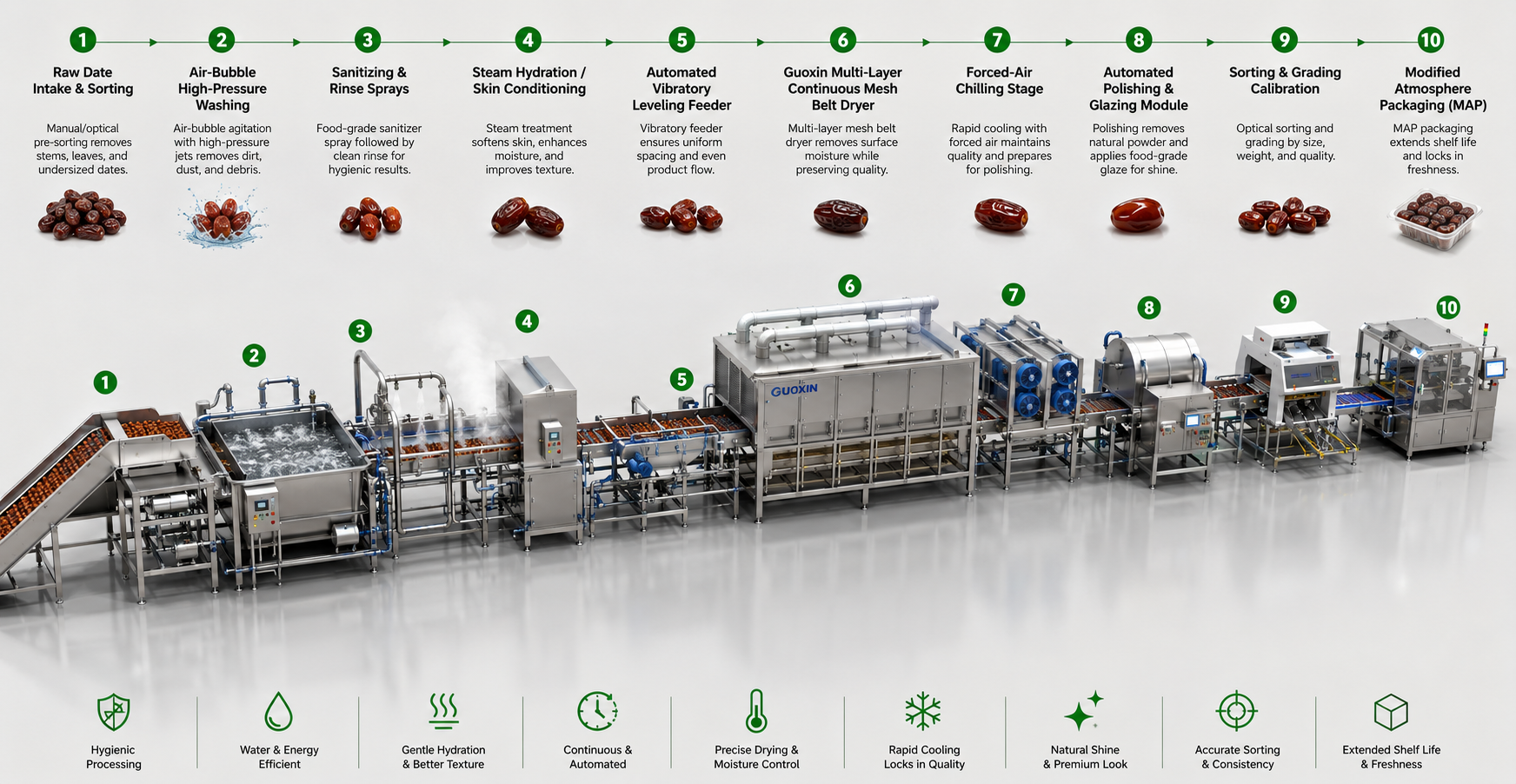

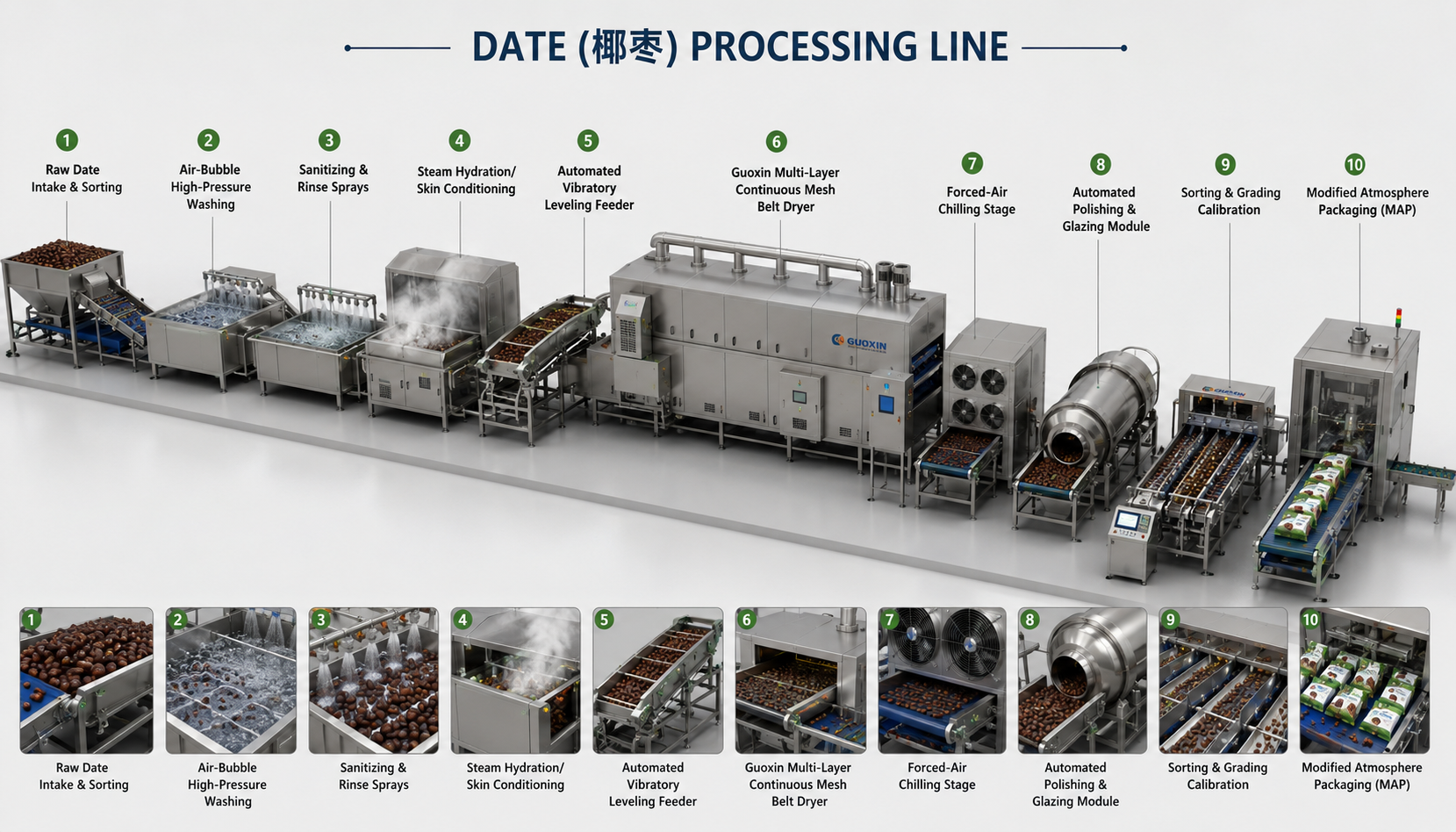

Full Turnkey EPC Processing Line Integration

Enterprise buyers require comprehensive, single-source factory design to ensure optimized material flow, rigorous hygiene management, and uniform processing speeds across all line components. Guoxin Machinery delivers complete EPC (Turnkey) solutions:

• Automated Leveling Distribution: Prevents manual piling errors by using a vibratory leveling feeder that spreads incoming wet dates into a uniform, single-layer bed configuration across the SUS304 conveyor belt.
• Integrated Polishing & Glazing Module: Post-drying, dates pass through specialized continuous rotating brush rollers that gently polish the surface, removing any crystallized sugar haze and enhancing the high-end visual appeal required for premium retail packaging.

FAQ

Q1: How do I select the correct equipment model and capacity configuration for a premium Medjool date factory?

A: Selection is calculated based on daily peak harvest tonnage and the initial flesh density of the dates. Medjool dates require longer retention times inside the drying enclosure due to their large size and high moisture-retention properties. If your target is an output of 10 tons of finished product per 24-hour cycle, you must factor in a moisture mass-loss calculation of approximately 20%. This requires a system capable of handling 12.5 tons of wet input daily. For this scale, we configure our GX-DT-205 Enterprise Plant with a 2,000 mm belt width to ensure the product layer remains thin and uniform, preventing stacking that causes uneven drying.

Q2: What is the recommended factory layout for a continuous date processing line to pass international audit standards?

A: The plant architecture must strictly isolate wet and dry processing operations to eliminate cross-contamination risks. The pre-washing, sorting, and steam hydration equipment must be placed in a designated Wet Zone with specialized floor drainage. The automatic date fruits mesh belt drying line serves as the physical barrier separating the plant. The discharge end of the dryer must feed directly into a positive-pressure, HEPA-filtered Clean Zone where cooling, brush polishing, optical sorting, and automated packaging occur under strictly monitored relative humidity conditions (<40%) to block microbial activity.

Q3: What are the investment budget expectations, and what is the typical payback period (ROI) for an automated line?

A: Total capital expenditure (CapEx) depends on the chosen level of automated grading (e.g., manual sorting tables versus automated multi-camera optical sorters) and the thermal source configuration. While the initial investment for a fully automated continuous lines exceeds that of static tray-drying rooms, the system minimizes manual material handling, requiring only 2 to 4 line operators instead of large manual labor teams. Combined with a 60% to 75% utility reduction, the operational cost savings alongside the premium market pricing secured for zero-defect, high-glaze dates typically yield a complete capital payback within 15 to 24 months of seasonal operation.

Q4: How does the mechanical design handle cleaning and food-contact safety compliance?

A: To comply with global food safety standards (including FDA and European CE regulations), all structural frame components, continuous woven mesh belts, air turn-vanes, and interior panels are fabricated from food-grade SUS304 stainless steel. The interior walls feature a smooth, polished finish with a radius-corner design that prevents product debris or sugars from accumulating. The drying enclosure is engineered with oversized, double-sealed access doors and a synchronized internal wash-down layout, allowing maintenance teams to perform rapid sanitation and simplify Clean-in-Place (CIP) routines.

Engineering Consultation and Material Validation Services

Henan Guoxin Machinery collaborates with international agricultural cooperatives and commercial food packaging brands to validate operational metrics before equipment fabrication begins.

• Testing Operations: Processors can submit specific date varieties to our analytical lab to establish precise moisture-evaporation curves, sugar crystallization limits, and thermal tolerance profiles.
• Project Engineering: Provision of full 3D plant blueprints, structural load calculations, custom utility integration planning, and on-site factory commissioning managed by our senior engineering field services division.
